Modbus/TCP sources

Navigation: Configuration > IoT > Sources > Modbus/TCP sources

This page configures Modbus/TCP sources for the IoT data collection subsystem of the IRF1000.

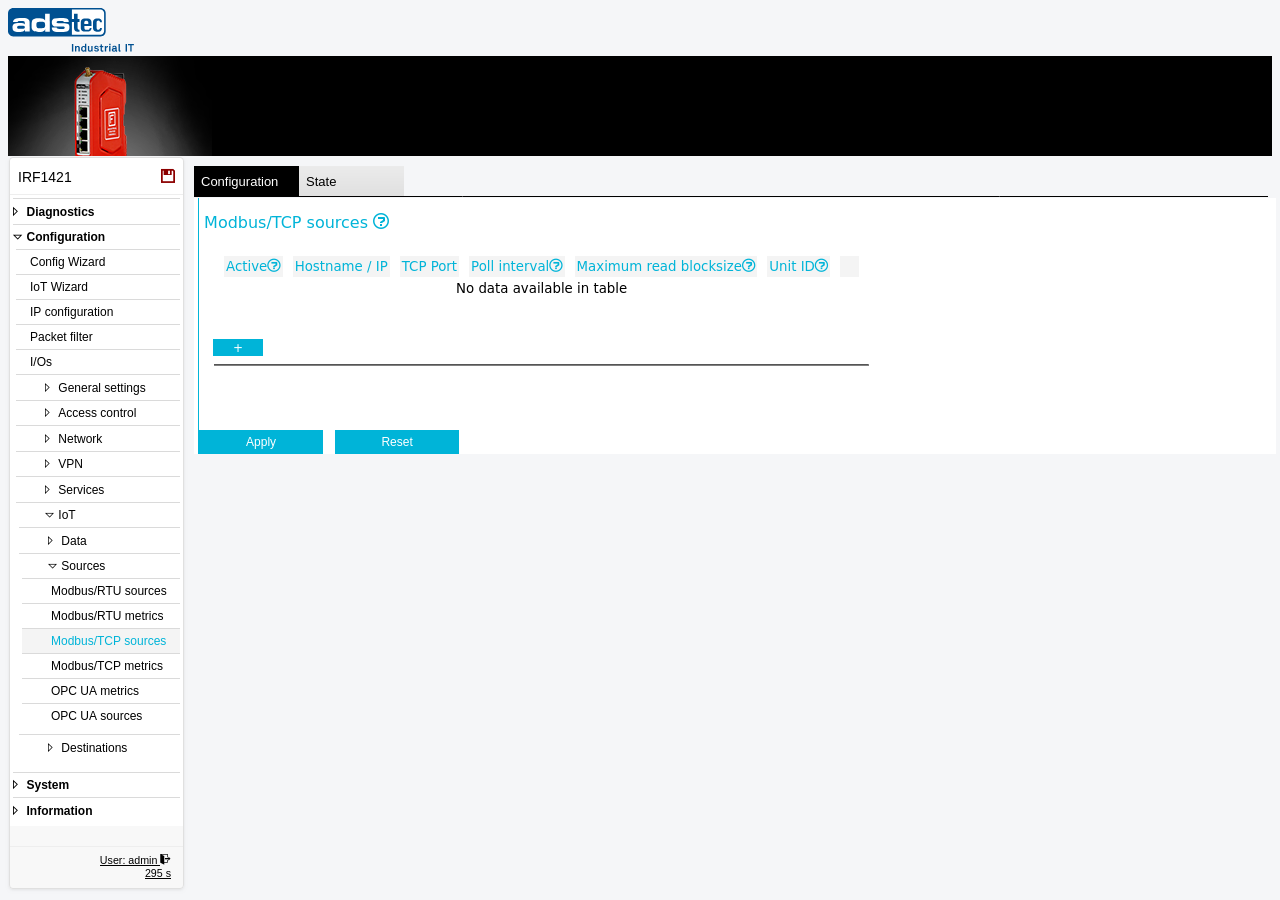

Modbus/TCP sources

Settings

(general): Configure which Modbus/TCP slaves should be polled.
(general): State of static routing entry
(general): Interval in seconds in which the given registers are read.
(general): Maximum supported size of continuous registers to be read from this source.
(general): Modbus unit ID or bus address. Please note that the unit ID must be different for each of the connected slaves but the serial parameters should be the same if there are multiple devices on the bus.
