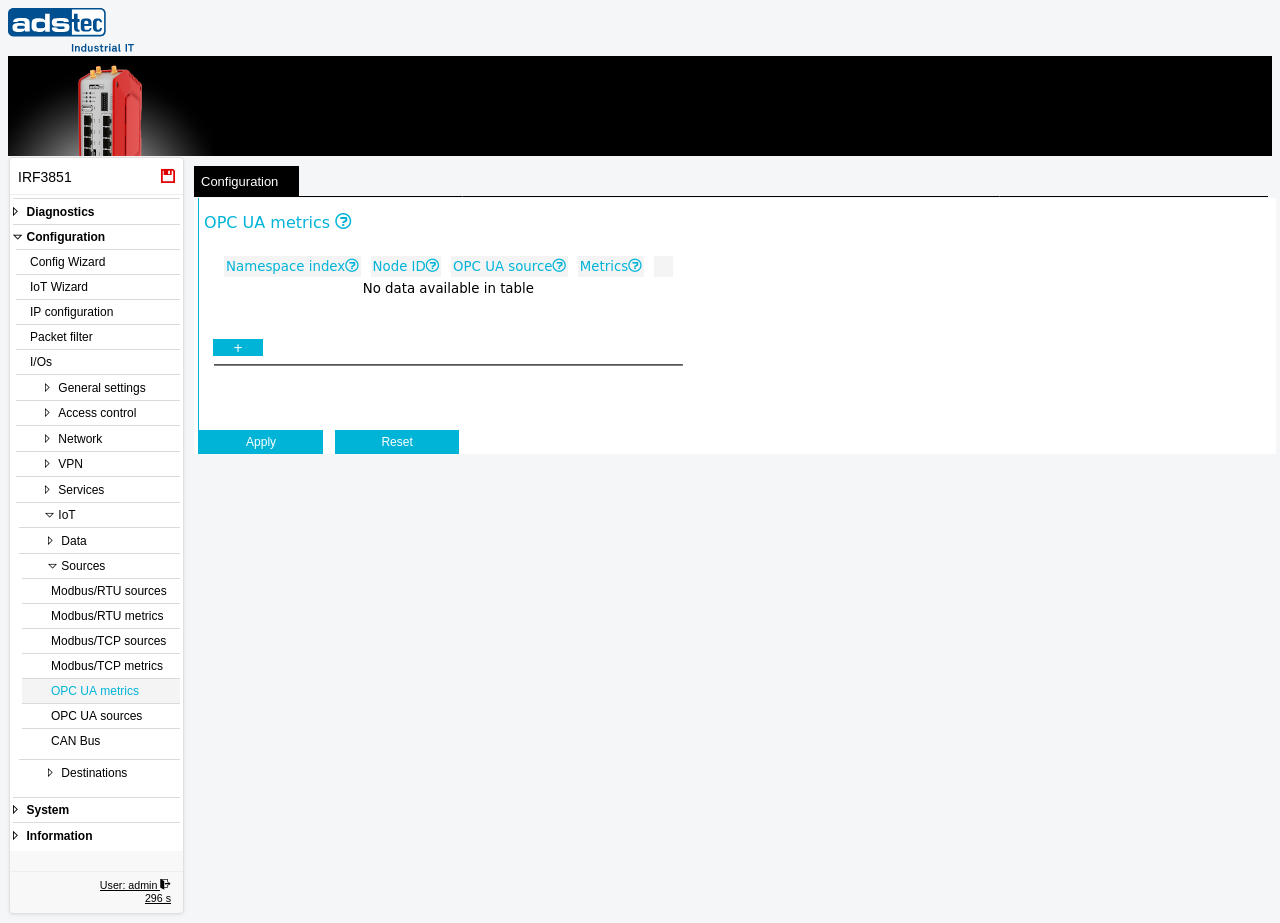

OPC UA metrics

Navigation: Configuration > IoT > Sources > OPC UA metrics

This page configures OPC UA metrics for the IoT data collection subsystem of the device.

Settings

(general)

Add the mapping for a configured OPC UA source to a metrics if the metric has its source on an OPC UA server

(general)

The OPC UA namespace index is a identifier which has to be entered together with the node ID to unambiguously address the metric in the OPC UA model of the source.

(general)

The node ID is a numeric identifier within the namespace of the OPC UA source to unambiguously address the given metric.

(general)

Select the source. If the list is empty you have to add a new source on the OPC sources page first

(general)

Select the metric to map it to the given source. If the list is empty you have to add a new metric on the metrics page first
